MIL-DTL-43994 Marker, Identification, Fire, Chemical Hazard, And Restricted Area, ReflectiveThis specification covers markers processed on pressure-sensitive adhesive backed retroreflective sheeting.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23


MIL-DTL-43994D
MARKER ­ 1
MARKER ­ 2
(FIRE HAZARD CLASS 1.1)
(FIRE HAZARD CLASS 1.2)
MARKER ­ 3
MARKER ­ 4
(FIRE HAZARS CLASS 1.3)
(FIRE HAZARS CLASS 1.4)
MARKER
A
B
NUMERAL
A
B
NUMERAL
SIZE
SIZE
1
24"
-
10"H x 2"W
12"
-
5"H x 1"W
2
24"
8"
10"H x 2"W
12"
4"
5"H x 1"W
3
24"
-
10"H x 2"W
12"
-
5"H x 1"W
4
24"
-
10"H x 2"W
12"
-
5"H x 1"W

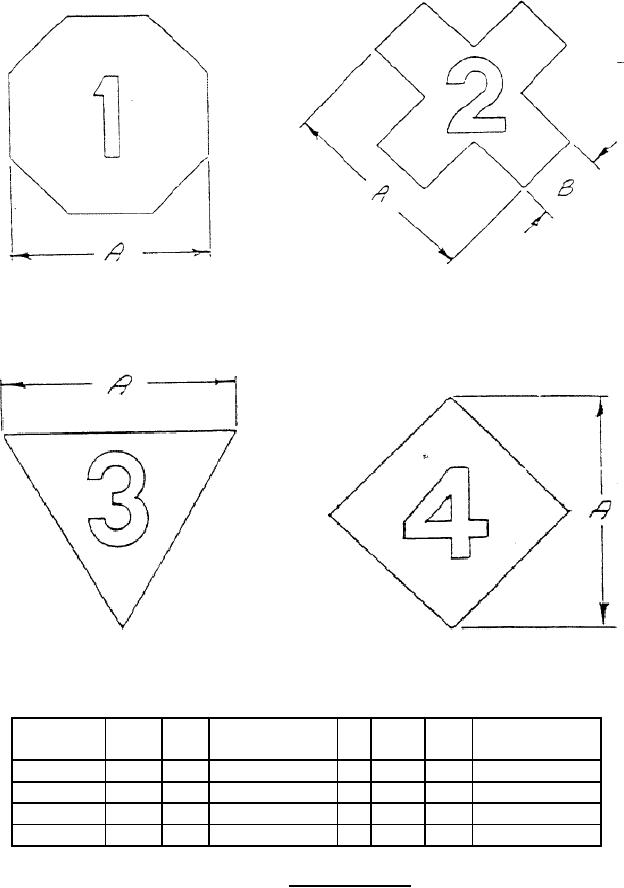

FIGURE 1. Markers 1 thru 4.
